Shims and spacers
Here is our standard range of shims and spaceres that can be ordered online. If you are looking for custom made shims and solutions, go to custom made shims.
Uses and benefits with shims
Shims that can also be called spacers can be used to compensate for tolerances in various types of manufacturing. We also offer laminated shims which facilitate the use of shims as the user can adjust the thickness of the shims by scaling one foil at a time. Shims can also have effects on production so that the production does not have to be as precise, which in turn can reduce lead times and process costs in production.

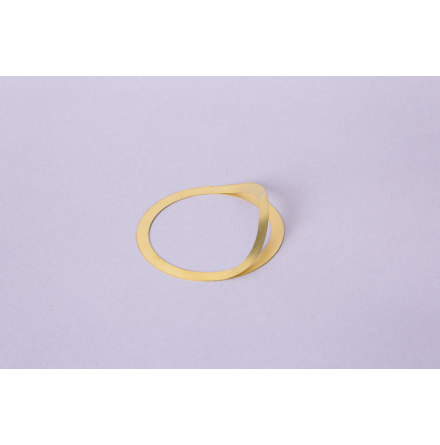

Laminated shims for ball-bearings
Ball-bearing shims are a type of shims that is always a ring in different dimensions. Our laminated brass rings consist of 0.05 mm thin foils. These foils are glued together in such a way that the ring appears as a uniform solid ring. But the foils can be scaled one by one with a sharp knife in order to be able to gradually scale down until the appropriate total thickness is obtained. When peeling foils, the spacer retains its appearance and strength, similar to that of a completely homogeneous sheet. The fitting rings make it easier to install e.g. ball bearings and can increase production efficiency. See more specifications under shims for ball-bearings.

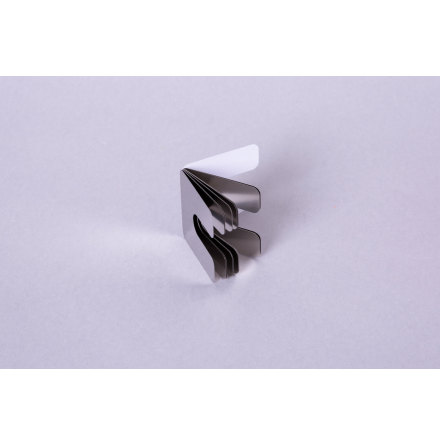

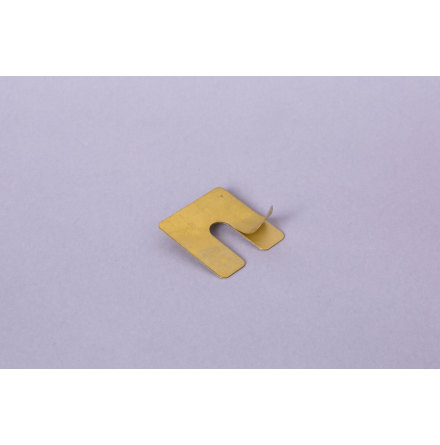

Peelable slotted shims
Motor pads or slotted shims are a type of shims specially designed to adjust distances in engines. With laminated slotted shims, every installer can directly adjust the slotted shims to the appropriate thickness. The 0.05 mm thin foils can be scaled one by one with a sharp knife in order to gradually be able to scale down until a suitable total thickness is obtained from the shim. When peeling foils, the spacer retains its appearance and strength, similar to that of a completely homogeneous sheet. Read more about these shims under slotted shims in laminum.

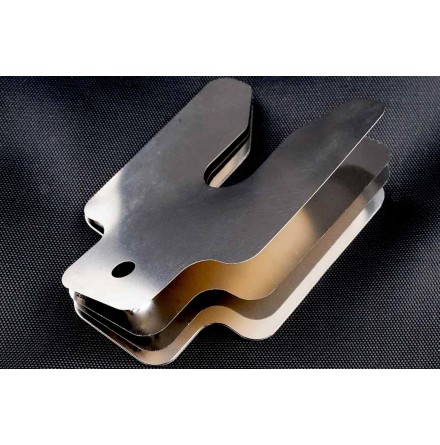

Edge welded shims made up of 10 individual shims
With lamipac slotted shims, the 0.1 mm thin foils can be taken off one by one and each foil can be used as a single shim, but even what remains after removing a number of washers can be used as a shim. The foils are basically 10 individual shims that are joined at one edge with a laser weld that is easily removable. Read more about slotted shims in lamipac.
Solid Lamisol® slotted shims
The lamisol slotted shims are of solid material, i.e. not scalable, and are suitable for adjusting coarse tolerances and for installations of a large number of engines. Lamisol® slotted shims are available in stainless steel or brass in various thicknesses. See more specifications under slotted shims in lamisol.
If you are looking for customized shims, you can find more info under custom made shims, or you can send an inquiry where you can attach drawings and specifications.
Feel free to contact us with any questions or concerns.
-
Laminated shims in brass for ball bearing mounting. The laminated shims have...from 38,00 kr
-
Laminated shims in brass or stainless steel The laminated shims have thin fo...from 33,88 kr
-
Shims in stainless steel with foils joined at one edge with a laser weld. Eac...from 100,38 kr
-

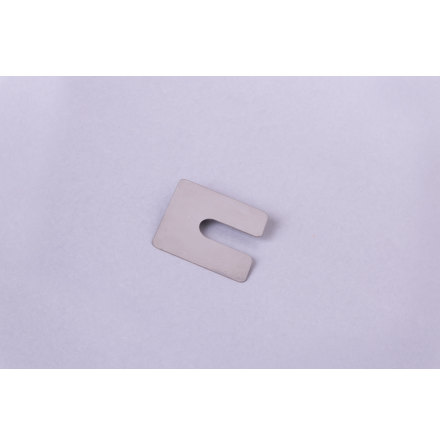

Slotted shims are shims for adjusting engines. Stainless Steel X5CrNI18-10...from 12,25 kr
-

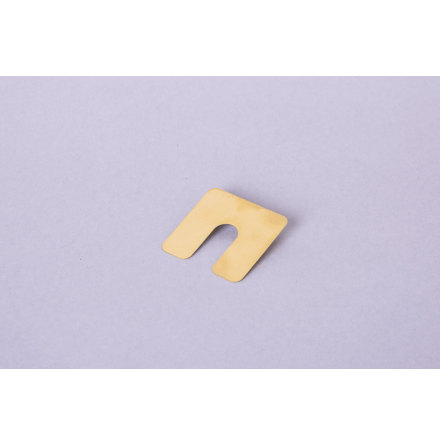

Slotted shims shims for adjusting engines. Brass type CuZn37 (CW508L). Hi...from 11,25 kr
-

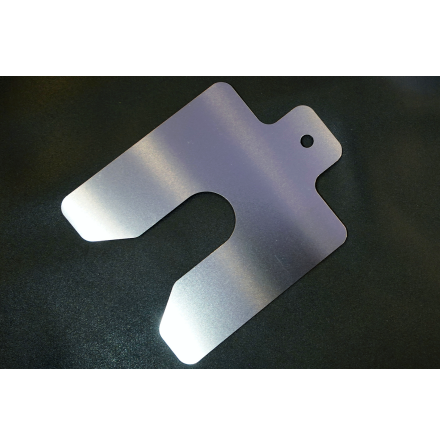

Shims in stainless steel. Thicknesses between 0.025 - 3 mm. Handle and bol...from 212,50 kr
-
Shims in stainless steel. Thicknesses between 0.025 - 3 mm. Handle and bol...from 322,50 kr
-
Shims in stainless steel. Thicknesses between 0.025 - 3 mm. Handle and bol...from 647,50 kr
-
Shims in stainless steel. Thicknesses between 0.025 - 3 mm. Handle and bol...from 1412,50 kr
-
Shims in polyester (POM). 1mm and 2mm thicknesses. Handle and bolt hole ...from 562,50 kr
-
Shims in polyester (POM). 1mm and 2mm thicknesses. Handle and bolt hole ...from 658,75 kr
-
Shims in polyester (POM). 1mm and 2mm thicknesses. Handle and bolt hole ...from 743,75 kr
-
Shims in polyester (POM). 1mm and 2mm thicknesses. Handle and bolt hole ...from 990,00 kr
-
Shims in polyester (POM). 1mm and 2mm thicknesses. Handle and bolt hole ...from 1987,50 kr
-
Shims in stainless steel. Thicknesses between 0.025 - 3 mm. Handle and bol...from 251,25 kr
-
Slotted shims in stainless steel with foils joined at one edge with a laser w...from 1002,50 kr
-
Slotted shims in stainless steel with foils joined at one edge with a laser w...from 1281,25 kr
-

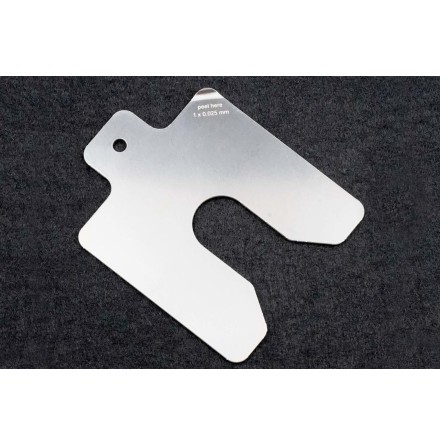

Laminated shims in aluminium and brass or stainless steel. Total thickness...from 1250,43 kr
-
Laminated shims in aluminium and brass or stainless steel. Total thickness...from 2067,50 kr
-
Laminated shims in polyester. Total thickness 1.025 mm Handle and bolt ho...1394,25 kr
-
Laminated shims in polyester. Total thickness 1.025 mm Handle and bolt ho...2368,75 kr
-
Slotted shims in stainless steel with foils joined at one edge with a laser w...from 1815,00 kr
-
Slotted shims in stainless steel with foils joined at one edge with a laser w...from 2408,75 kr
-
Slotted shims in stainless steel with foils joined at one edge with a laser w...from 8476,25 kr
