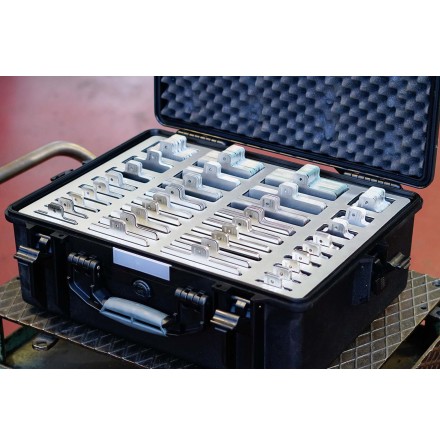

Shim case - L

Shim kit with the two largest sizes of massive shims: Model S3 och S4. In this kit each shim model is available in 10 different thicknesses.

  • 380 shims totally in the kit
  • The shims have rounded corners and a bolt-hole
  • They are easy to fit and remove
  • Made from stainless steel
  • Thickness clearly marked on each shim
  • In thicknesses between 0.0025mm - 0.2mm the thickness is marked with ink.
  • In thicknesses aboce 0.2mm the thickness is marked with laser.



Measurements shims S3

Measurements shims S4

A = 100 mm
B = 100 mm
C = 32 mm

A = 125 mm
B = 125 mm
C = 45 mm



Quantities and thicknesses

  Thickness (mm)   0.025   0.05   0.10   0.20   0.25   0.40   0.50   0.70    1.00   2.00
  Quantites S3 shims 100*100    20   20   20   20   20   20   20   20   20   10
  Quantities S4 shims 125*125    20   20   20   20   20   20   20   20   20   10









Part no Name Delivery time Price (Tax included) Qty
VM001204 Shim case L - S3 & S4, 380pcs 10-14 days (Sweden) 26820,00 kr/pc
