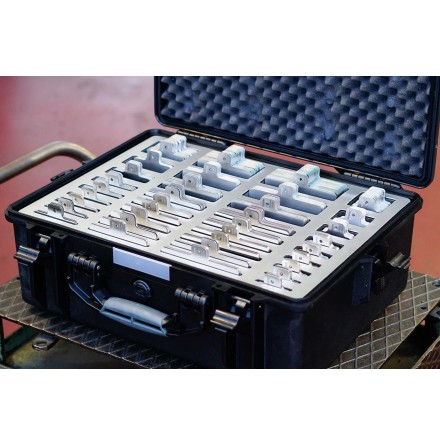

Shim case - XL

Our largest shim kit with four different sizes of shims, modell S1, S2, S3 och S4. In this kit each shim model is available in 10 different thicknesses.

  • 780 shims totally in the kit
  • The shims have rounded corners and a bolt-hole
  • They are easy to fit and remove
  • Made from stainless steel
  • Thickness clearly marked on each shim
  • In thicknesses between 0.0025mm - 0.2mm the thickness is marked with ink.
  • In thicknesses aboce 0.2mm the thickness is marked with laser.



Measurements

Shims  S1

Shims S2

Shims S3

Shims S4

A = 50 mm
B = 50 mm
C = 13 mm

A = 75 mm
B = 75 mm
C = 21 mm

A = 100 mm
B = 100 mm
C = 32 mm

A = 125 mm
B = 125 mm
C = 45 mm



Number and thicknesses

  Thickness (mm)  0.025   0.05   0.10   0.20   0.25   0.40   0.50   0.70    1.00   2.00
  Number S1 shims 50*50    20   20   20   20   20   20   20   20
   20   20
  Number S2 shims 75*75    20   20   20   20   20   20   20   20
   20   20
  Number S3 shims 100*100   20   20   20   20   20   20   20   20
   20   10
  Number S4 shims 125*125   20   20   20   20   20   20   20   20   20   10









Part no Name Delivery time Price (Tax included) Qty
VM001200 Shim case XL - S1, S2, S3 & S4. 780pcs 10-14 days (Sweden) 37745,00 kr/pc
